Dirt particles in coolants often lead to blockages in small cooling channels, which can render the mould inserts unusable.

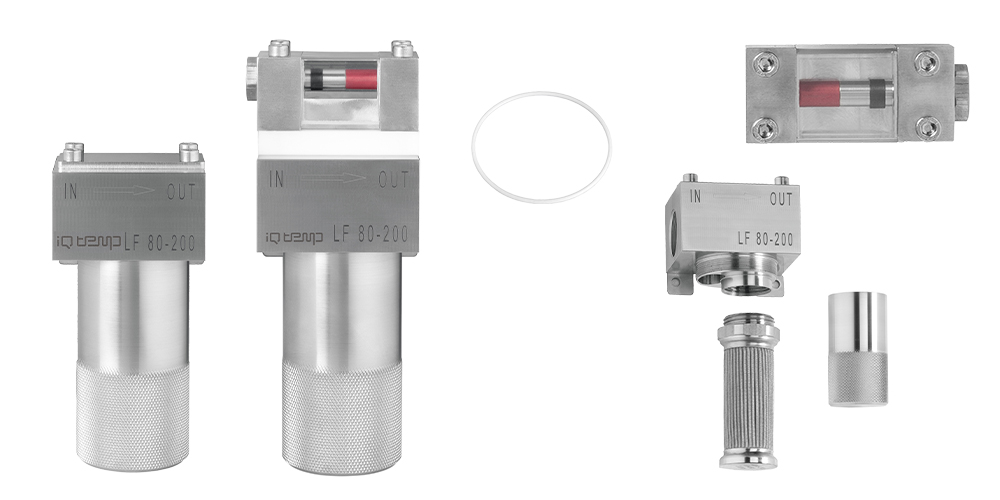

The easy-to-maintain LF80-200 stainless steel line filter offers cost-effective and excellent protection against foreign particles, especially for near-contour cooling channels of injection moulds. The filter can be flanged to the mould or operated directly on temperature control units.

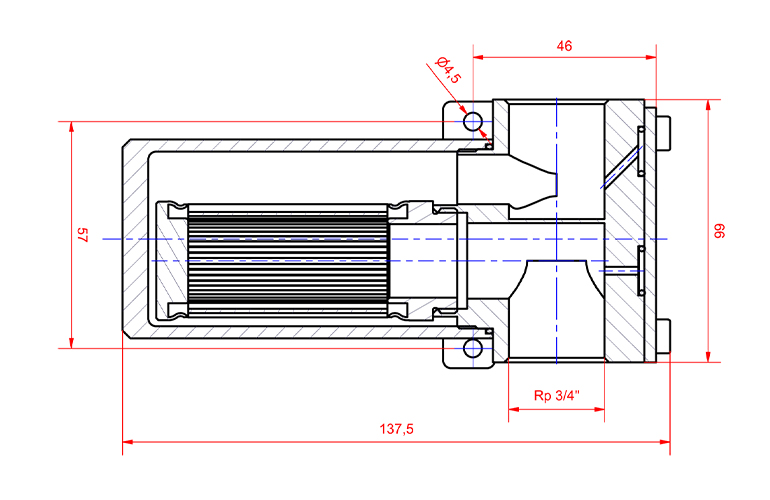

The high filter performance is based on a star-shaped folded stainless steel screen that prevents any particles > 200 µm from entering the cooling channels.

Versatile use
The filter is suitable for water- or oil-based coolants with a flow rate of up to 80 l/min and offers a wide range of applications in a temperature range of -10 to +260°C and a pressure of 16 bar.

Easy maintenance
Thanks to the maintenance-friendly concept, the filter insert is easy to remove and can be cleaned with compressed air, an ultrasonic bath or a high-pressure cleaner. The filter housing remains in the system circuit.

The LF80-200 is optionally available with a service indicator.
